Aerial platforms are rapidly becoming vital tools for businesses looking to more efficiently collect information crucial to their operations. As the first integrated aerial camera with an optical zoom up to 30x and digital up to 6x, the Zenmuse Z30 offers unparalleled image data capture. Enterprises are now able to capture the information they require from a greater range, making image data collection significantly faster and eliminates risk of harm to both personnel and equipment.
Designed to seamlessly integrate with DJI’s Matrice series of airframes, the Zenmuse Z30 works right out of the box and gives access to the intelligent features DJI is known for.
ZOOM

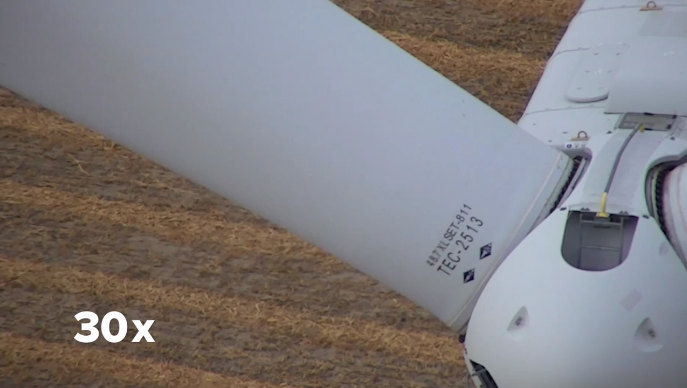

The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components to detect damage.
As a result of letting you conduct inspections from a distance without the need to fly close, not only is speed and efficiency of your operations increased but risk of collision is obviated.

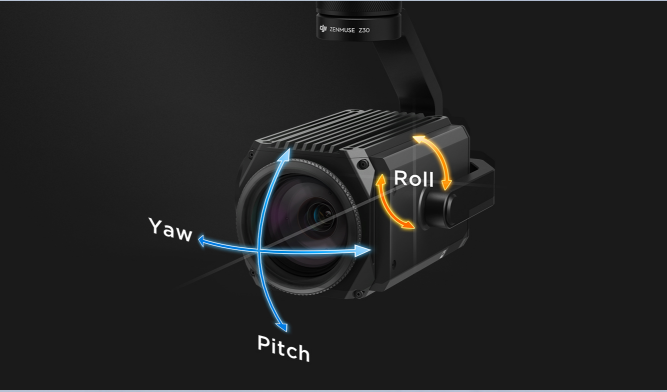

STABILIZATION
TAPZOOM
With TapZoom, precise collection of visual data is as easy as tapping your finger to point the camera at the subject of your inspection. The Zenmuse Z30 automatically adjusts its focal length to give you an enlarged view, making the most minute of details visible in just seconds.
APPLICATION

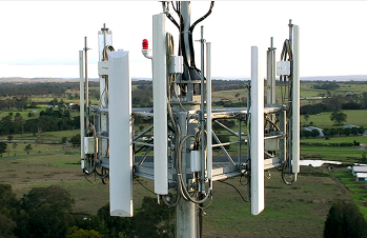

CELL TOWER INSPECTION
Safer and quicker cell tower inspections with the Zenmuse Z30. Eliminate the need for dangerous manual inspection and the risk of crashing into assets by inspecting from a distance. Stream your footage to a central hub to reduce boots on the ground and ensure no extra trips are needed.

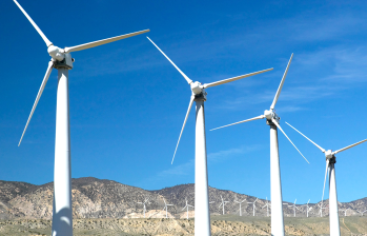

WIND TURBINE INSPECTION
Detect fine damages from afar while avoiding damage to personnel and equipment. Set up your aircraft to circle your object of inspection with Point of Interest for a full 360° view of your asset.
FIREFIGHTING
First responders can now quickly get an overview of a scene, and use the 30x zoom to drill down for accurate and specific intelligence to base their operations on.

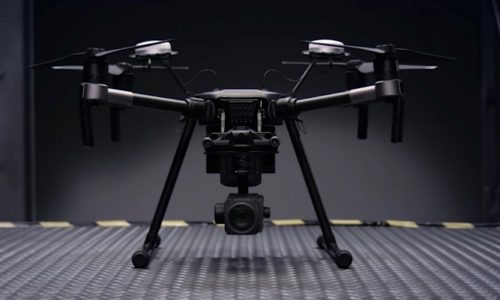

COMPATIBLE WITH MATRICE
Adapting the Z30 to your existing Matrice-based aerial system is easy thanks to its integrated design. Simply slide the camera in the mount and you’re ready for take-off.
The Zenmuse Z30 is designed for use with DJI Lightbridge 2, breaking technical limits to increase range up to 3.1 miles (5km). The integrated controller and intelligent algorithms set a new standard for wireless HD image transmission by lowering latency and increasing image fidelity.
SPECS
GENERAL
| Name | Zenmuse Z30 |
| Dimensions | 152×137×61 mm |
| Weight | 556 g |
GIMBAL
| Angular Vibration Range | ±0.01° |
| Mount | Detachable |
| Controllable Range | Pitch : +40° to -90°, Yaw: ±320° |
| Mechanical Range | Pitch ‘: +50° to -140°, Yaw: ±330°, Roll: +90° to -50° |
| Max Controllable Speed | Pitch ‘: 180°/s, Yaw: 180°/s |
ENVIRONMENTAL
| Operating Temperature | 14° to 113° F (-10° to 45° C) |
| Non-Operating Temperature | -4° to 140° F (-20° to 60° C) |
CAMERA
| Sensor | CMOS, 1/2.8″ Effective Pixels: 2.13 M |
| Lens | 30x Optical Zoom F1.6 (Wide) – F4.7 (Tele) Zoom Movement Speed: – Optical Wide – Optical Tele: 4.6 sec – Optical Wide – Digital Tele: 6.4 sec – Digital Wide – Digital Tele : 1.8 sec Focus Movement Time: ∞ – near: 1.1 sec |
| FOV | 63.7°(Wide) – 2.3°(Tele) |
| Digital Zoom | 6x |
| Min. Working Distance | 10 mm – 1200 mm |
| Photo Formats | JPEG |
| Video Formats | MOV, MP4 |
| Working Modes | Capture, Record, Playback |
| Still Photography Modes | Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec) |
| Exposure Mode | Exposure Mode Auto, Manual, Shutter priority, Aperture priority |
| Exposure Compensation | ±2.3 (1/3 increments) |
| Metering Mode | Center-weighted metering, Spot metering (Area option 12×8) |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/30 – 1/6000 s |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Custom (2000K – 10000K) |
| Video Captions | Supported |
| TapZoom | Supported |
| TapZoom Range | 1-5 |
| Defog | Supported |
| One Key to 1x Image | Supported |
| Anti-flicker | 50 Hz, 60 Hz |
| PAL/NTSC | Supported |
| Supported SD Cards | MicroSD (SD / SDHC / SDXC) Max. Capacity: 64 GB, Class 10 or UHS-1 |
| Supported File Systems | FAT32 (≤ 32 GB) exFAT (> 32 GB) |
