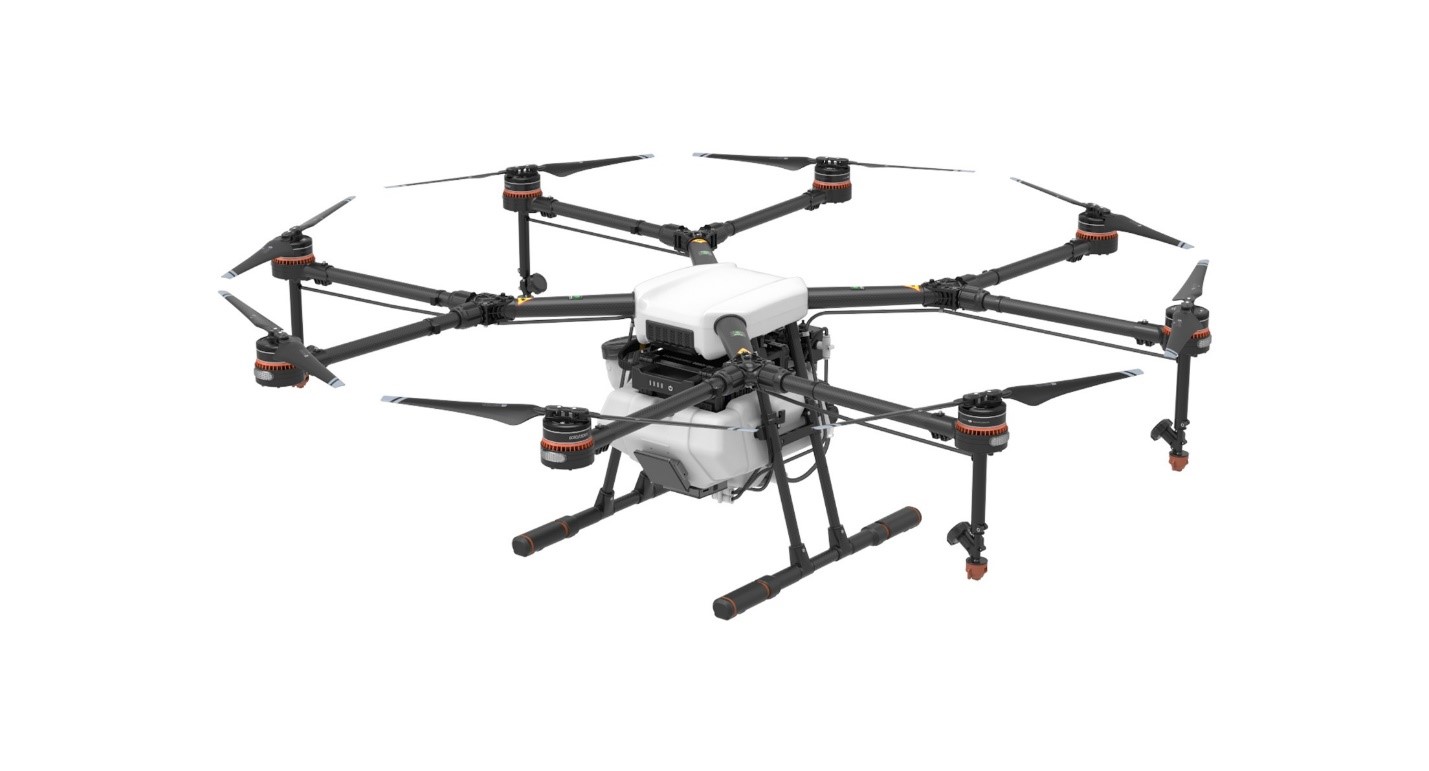

AGRAS MG-1S

The Agras MG-1S integrates a number of cutting-edge DJI technologies, including the new A3 Flight Controller, and a Radar Sensing System that provides additional reliability during flight. The spraying system and flow sensor ensure accurate operations. When used with the MG Intelligent Operation Planning System and the DJI Agriculture Management Platform, a user can plan operations, manage flights in real-time, and closely monitor aircraft operating status. The MG-1S is a high-performance aircraft capable of offering comprehensive solutions for agricultural care.

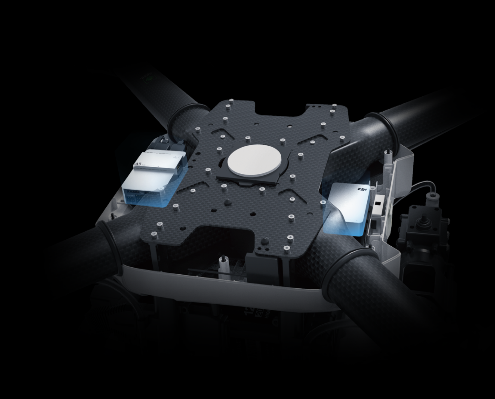

A3 Flight Controller

Equipped with DJI’s advanced A3 Flight Controller, the MG-1S is capable of high levels of reliability.  Its algorithm has been optimized for agricultural utilizations, ensuring stable flight even with sloshing liquids. In addition, the redundant design of the A3 includes dual compasses. If an error occurs in one sensor, the system will automatically switch to the other sensor to continue safe, reliable flight.

Radar Sensing

Three high-precision, microwave radars are placed on the front slope, rear slope and the bottom of the spray tank. Radars on front and rear slopes detect the terrain, allowing the aircraft to adjust its height approximately. The downward radar then provides high-precision height. As the radars scan, the MG-1S is able to perceive the change of terrain, adjust its altitude and maintain its altitude above the crops.



Precision Spraying



A new spraying system enables more accurate spraying. With two compatible pumps controlling the front pair and rear pair of nozzles separately, there are now three spraying modes available: forward spraying, backward spraying and full spraying. A new pressure sensor and flow sensor monitors the spraying rate in real-time, realizing dynamic control over spray speed and amount during operation. Nozzles with extended spray booms have been used to make better use of downward airflows. This spraying system now responds more accurately to commands, adding accuracy and effectiveness to spraying operations.



Optimized Mechanical Structure



The frame arm of the MG-1S is detachable, and the landing gear is optimized, lowering potential maintenance costs. A water-resistant film has been added to protect the ESCs. The liquid valve has been placed on the side of delivery pump, and the delivery pump is located above the spray tank, making liquid injection, demounting and cleaning more convenient.





DJI Agriculture Management Platform

DJI provides a comprehensive spraying management platform along with the MG-1S. Use the platform to supervise the flight status of every aircraft, master spraying status and manage your spraying team to improve working efficiency. You can also assign fields to each operator and check deployed fields. By sharing intelligent planning to operators, management for spraying operations will be more efficient and economic, as operators can avoid repetitive spraying.

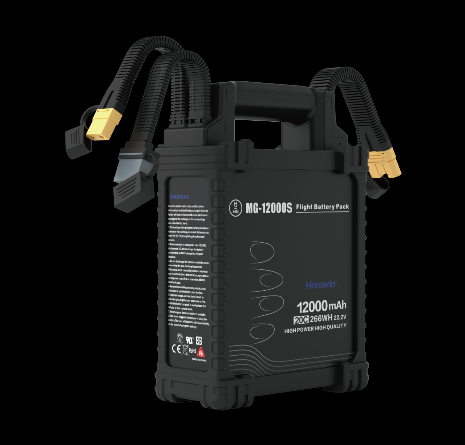

Intelligent Flight Battery

The MG-1S uses an intelligent battery with a capacity of 12000mAh, it can hover for 22 minutes* without loads. A high-strength protective shell and dampers are applied outside the battery, and the cables are also well-protected for safety and reliability. In addition, the battery provides more stable voltage, extending its lifespan.



*Hovering time acquired around sea level, with wind speeds lower than 3m/s.

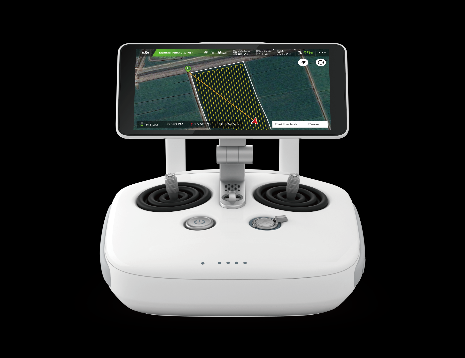

Professional Controller

The MG-1S controller includes a bright 5.5 inch/1080p display that is visible even under strong sunlight. With a built-in operation planning system, users can use the controller to increase working efficiency. The battery of controller supports a working time up to 5 hours, enabling long-time outdoor operations.

OPTIONAL ACCESSORIES

High-precision RTK System



The high-precision RTK System provides centimeter-level accuracy, making it ideal for precise, targeted spraying. It also supports precision field mapping and enhanced flight reliability. When flown single pilot, waypoint information can be uploaded to the MG Intelligent Operation Planning System, so it is very easy to use.

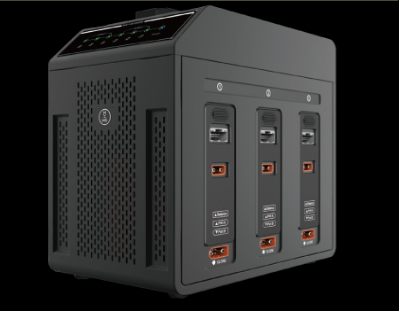

Battery Charging Hub

A specially designed Charging Hub connects up to 6 batteries, and each intelligent balancing charger can connect 2 charging hubs. In total 12 batteries can be connected and charged in sequence, saving you the trouble of replacing batteries for charging. It can balance the voltages of each battery when charging allowing longer battery life.

SPECS





AIRCRAFT FRAME

Diagonal Wheelbase 1515 mm
Frame Arm Length 625 mm
1471 mm×1471 mm×482 mm (arm unfolded, without propellers)
Dimensions 1471 mm×1471 mm×482 mm arm unfolded, without propeller)
780 mm×780 mm×482 mm (arm folded)



LIQUID TANK

Volume 10 L
Standard Operating Payload 10 kg
Max Battery Size 151 mm×195 mm×70 mm

NOZZLE

Model XR11001VS(0.379L/min)
Recommend Model XR110015VS(0.591L/min)
TK-VK6 (0.393L/min)
TK-VK8(0.525L/min)
Quantity 4
Droplet Size XR11001VS:130 – 250 μm subject to working environment and spraying speed)



FLIGHT PARAMETERS

Total Weight 10 kg (without battery)
Standard Takeoff Weight 23.8 kg
Max Takeoff Weight 24.8 kg (at sea level)
Max Thrust-Weight Ratio 1.71 (with 23.8 kg takeoff weight)
Power Battery DJI Designated Battery (MG-12000S)
Max Power Consumption 6400 W
Hovering Power Consumption 3800 W(@with 23.8 kg takeoff weight)
Hovering Time* 22 min(@12000 mAh & 13.8 kg takeoff weight)
10 min(@12000 mAh & 23.8 kg takeoff weight)
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.
Max Operating Speed 7 m/s
Max Flying Speed 12 m/s P & F Mode, with GPS);15 m/s (A Mode)
Max Service Ceiling Above Sea Level 2000 m
Recommended Operating Temperature 0 ℃ to 40 ℃



RADAR MODULE

Detection Range 1- 5 m
Working Range 1.5 – 3.5 m
Precision < 10 cm







REMOTE CONTROLLER CHARGER

Model A14-057N1A
Voltage 17.4 V
Rated Power 57 W

REMOTE CONTROLLER

Model DLG60A
Operating Frequency 2.400 GHz to 2.483 GHz
Max Transmission Range 1 km (unobstructed, free of interference)
EIRP ≤20 dBm
Built-in Battery 9000 mAh,2S LiPo
Output Power 7 W
Operating Temperature Range -10 ℃ to 40 ℃
Storage Temperature Range Less than 3 months: -20 to 45℃
More than 3 months: 22 to 28℃
Charge Temperature Range 5 ℃ to 40 ℃

MOTOR

Stator Size 60×10 mm
KV 130 rpm/V
Max Thrust 5.1 kg/rotor
Max Power 770 W
Weight 280g (with cooling fan)

ESC

Max Allowable Current (Continuous) 25 A
Operating Voltage 50.4 V(12S LiPo)
Drive PWM Frequency 12 kHz

FOLDABLE PROPELLER

Material High-performance engineered plastics
Diameter/Pitch 21×7 inch
Weight 58 g
