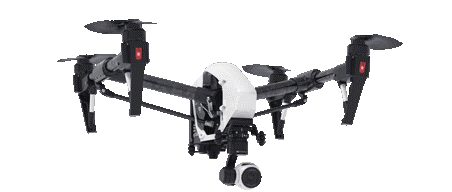

DJI INSPIRE 1 V2.0

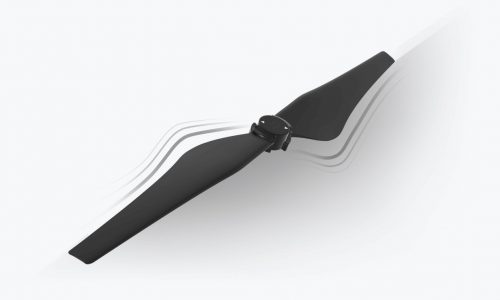

ROTOR DESIGN

The all new 13 inch quick release rotors are built with the unique DJI “Z-Blade” design. They have been reinforced with a new carbon fiber compound material to ensure excellent performance with increased stability.

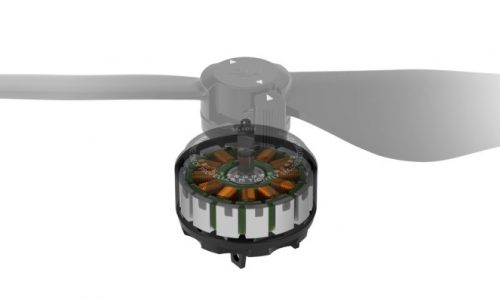

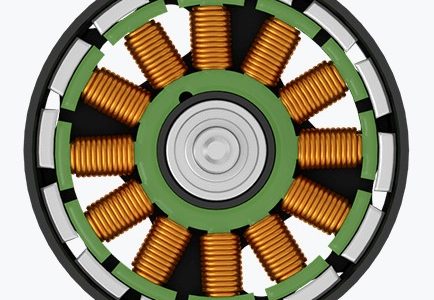

CURVED MAGNETS

Brushless motors pioneered by DJI are now the standard in the multirotor industry. But the Inspire 1 takes the next step in brushless development by integrating curved magnets that fit flush around the edge of each motor. Although much more difficult to produce, these magnets eliminate airflow gaps within the motor, greatly increasing efficiency.

SINGLE-WIRE DESIGN

Several strands of copper wire have been replaced by a single, dense strand. Reducing the wasted space between wires results in more copper within each motor, providing more power and less resistance. A centrifugal pump increases airflow inside the neat, tight copper windings dissipating heat much faster while greatly increasing the life of the motors.

NEW ESCS

The revolutionary Electronic Speed Controllers (ESC) with sinusoidal drive replaces the square wave drive of traditional ESCs redefining the whole drive system. The patented algorithm in the ESCs have been tuned and customized specifically for the Inspire 1 offering features such as closed loop torque control and distinct functional redundancy with the highest efficiency and the most reliability.

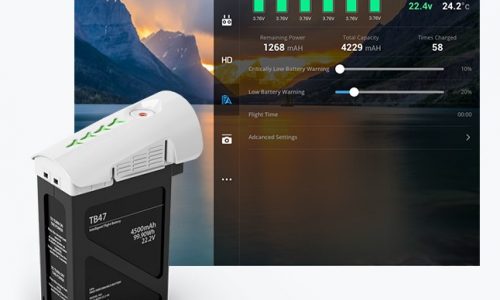

INTELLIGENT POWER MANAGEMENT SYSTEM

A fully integrated intelligent battery powers your Inspire 1 and virtually manages itself.

When in flight, your remaining battery power is shown live, letting you know how long you can continue to fly. Advanced algorithms calculate the distance of your aircraft and estimated time to return home, letting you know when it’s time to fly back.

The battery reports the voltage of each cell, the total lifetime charges and discharges, and the overall health and battery status. All this helps you keep your Inspire 1 in the air and flying for years to come.

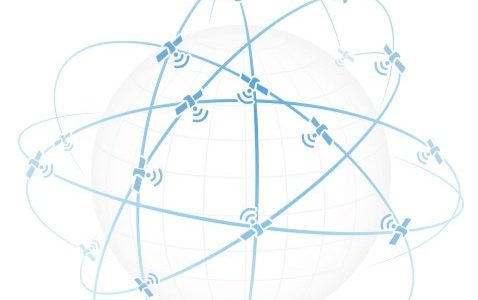

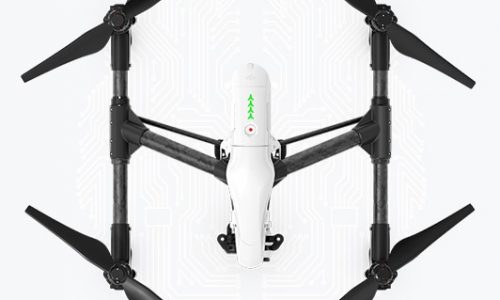

POSITIONING

As it flies, the position of your Inspire 1 is constantly updated and recorded using a high-strength, intelligent GLONASS + GPS system. This dual positioning system enables higher precision and quicker satellite acquisition, allowing you to see where the aircraft is on a live map and giving it a point to hover at when you release the controls.

MAIN CONTROLLER

This is the “brain” of the entire system, receiving thousands of bits of data every second and translating that data into action as you fly. The Main Controller tells every part of your Inspire 1 what to do, calculates environmental conditions in real-time, and ensures that the aircraft responds to your control commands instantly.

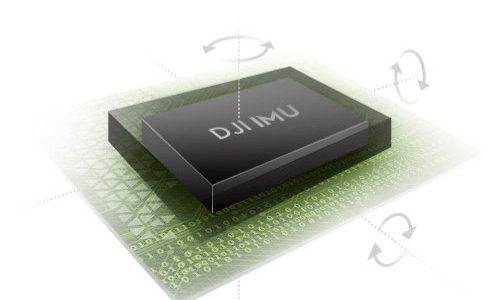

IMU

Automatically keeping the Inspire 1 stable and steady during flight only looks easy, as DJI’s advanced Inertial Measurement Unit (IMU) handles everything. The IMU incorporates both a 6-axis gyroscope and an accelerometer to monitor miniscule changes in tilt and movement. This allows the aircraft to compensate and adjust immediately, holding its position at all times.

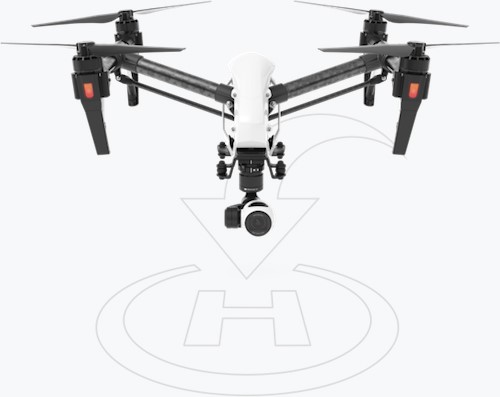

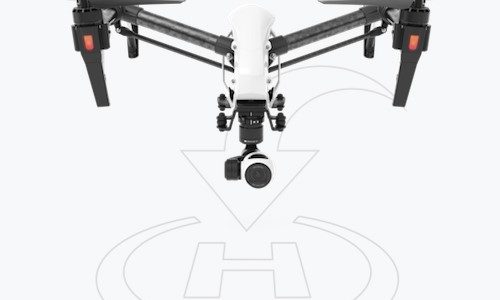

FAILSAFE

All of these features combine to put your Inspire 1 on autopilot when needed. If the battery runs low or connection with your remote controller is lost, the Inspire 1 uses its positioning system and smart flight technology to return back to you.

HOVER IN PLACE WITHOUT GPS

You can take off and land at the press of a button and keep your Inspire 1 steady indoors or when GPS satellites can’t be acquired with the new DJI Vision Positioning System.

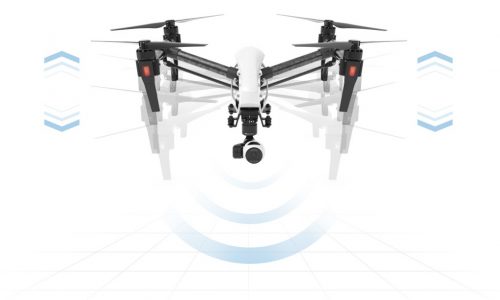

COMBINED VISUAL DATA AND SONAR WAVES

DJI built the Vision Positioning System from the ground up, customizing it to meet the rigorous requirements in place for anything that handles position holding on our flying platforms.

This system combines visual data and sonar waves in a single unit, detecting both variance in patterns on the ground and current altitude. With this information, your Inspire 1 can hover in place and automatically raise or lower its arms as you liftoff or descend to the ground.

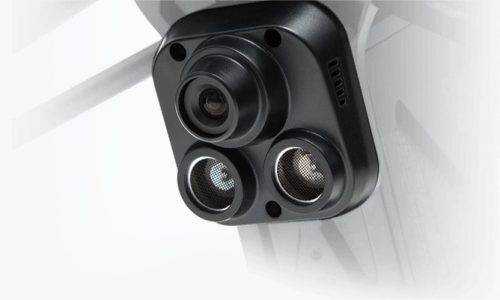

THE CPU CHIP

But the sonar and visual information is just one half of the fully integrated package: processing this information is handled by a dedicated CPU chip. This chip takes in feedback and outputs data in real-time, and is intelligent enough to distinguish between objects and ground patterns. All of this data is given to your Inspire 1’s flight controller, which in turn communicates with the entire aircraft.

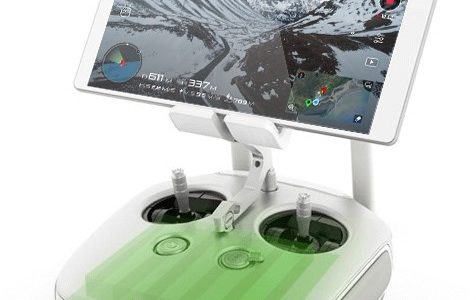

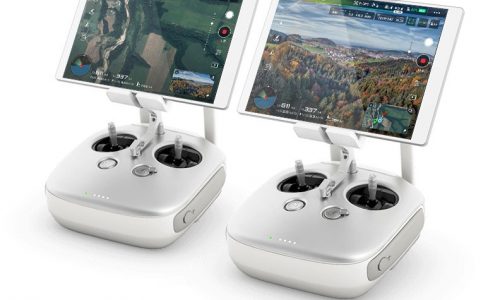

ABSOLUTE CONTROL

The Inspire 1’s remote controller combines DJI’s most sophisticated control technology with added dual operator support. Never before has such an advanced controller been

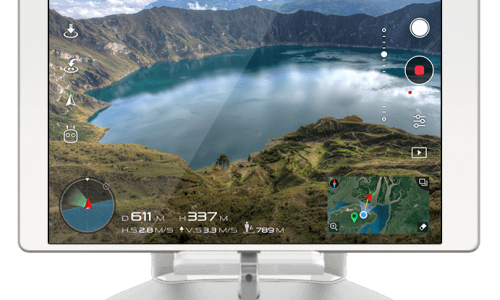

DJI LIGHTBRIDGE

For the first time ever, the DJI Lightbridge HD video downlink has been integrated into a remote. This gives you a live view of what your camera sees when connected to a screen or mobile device and increases your maximum control range to 3.1mi (5Km).

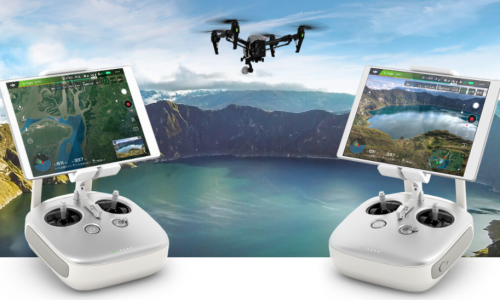

DUAL OPERATOR CONTROL

When flying with a friend, the Master controller pilots the aircraft while the Slave controller moves the gimbal and camera’s direction. Both remotes receive live data and video straight from the Inspire 1, but only the Master controller sends commands to the aircraft. The Slave controller must be linked to the Master via secure password to control the gimbal.

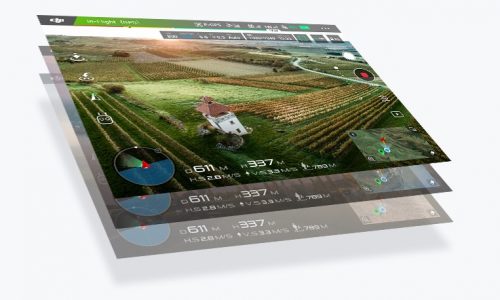

FLIGHT SOFTWARE

All of DJI’s flight system knowledge has been put into the remote’s software, giving you smooth, stable flight. Finely tuned control algorithms make you feel like you’re riding in the cockpit, with a level of control no other multirotor on the market can match.

RUNTIME

The built-in 6000 mAh LiPo 2S rechargeable battery means you can make multiple flights without thinking about the remote’s power. The remaining battery life is shown live right on the remote, and built-in alerts warn you when power is running low.

MATRICE 100 SPECIFICATIONS

AIRCRAFT

REMOTE CONTROLLER

GIMBAL

CAMERA

CHARGER

BATTERY (OPTIONAL)

BATTERY (STANDARD)

DOWNWARD VISION SYSTEM

APP
