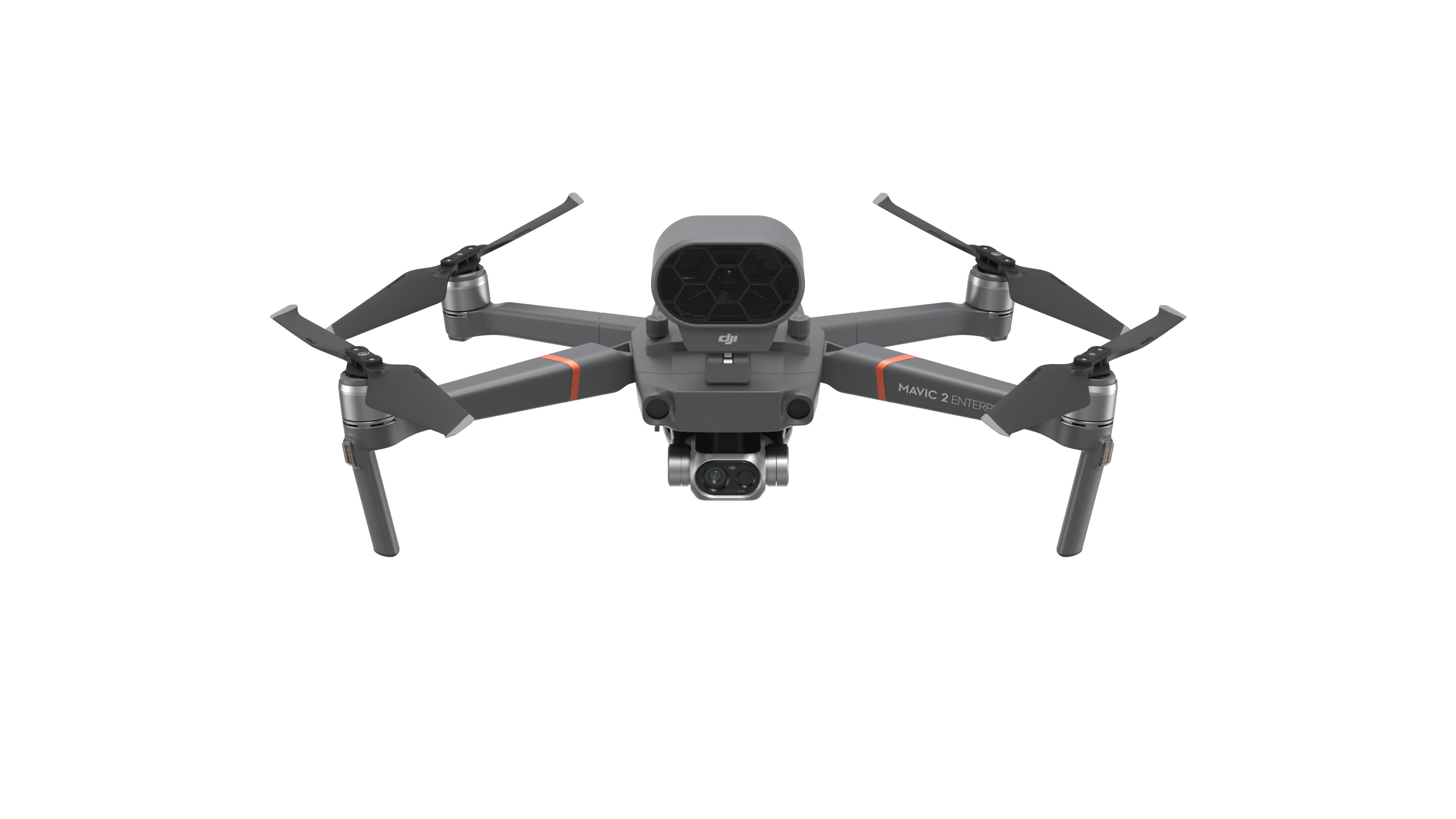

MAVIC 2 ENTERPRISE DUAL

Built to Empower. Destined to Serve.

  • Visible and Thermal Imagery
  • Integrated Radiometric FLIR Thermal Sensor
  • Adjustable Parameters
  • Multiple Display Modes:FLIR MSX, Infrared & Visible

Engineered for businesses that seek to transform their operations with drone technology, the Mavic 2 Enterprise Dual features an ultra-compact and foldable design with an array of advanced controls and accessories that extend users’ capabilities during critical operations like firefighting, emergency response, law enforcement, and infrastructure inspections.

Understand & Utilize the Power of Your Data

Visualize scenarios in real time, monitor and measure objects on site more safely and

efficiently so you can make the most informed decisions.

FLIR MSX: Combine thermal and visible imagery in real-time.

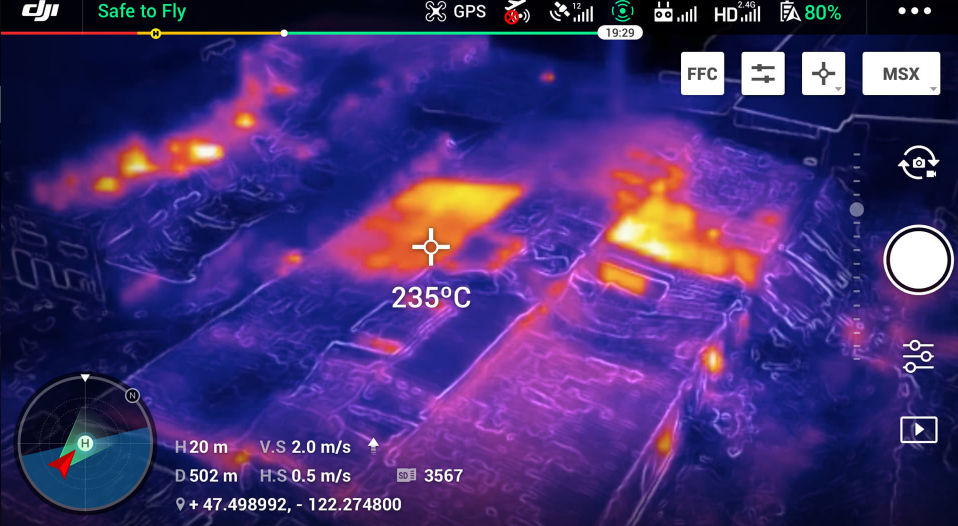

Spot Meter: Monitor and measure temperature.

Area Measurement: Oversee temperature measurements on specific areas.

(Spot temperature measurement)

Operate with Clarity and Enhanced Vision

For enhanced image visibility on all your captured data, Isotherm helps you get accurate heat measurements on a variety of objects and scenarios.

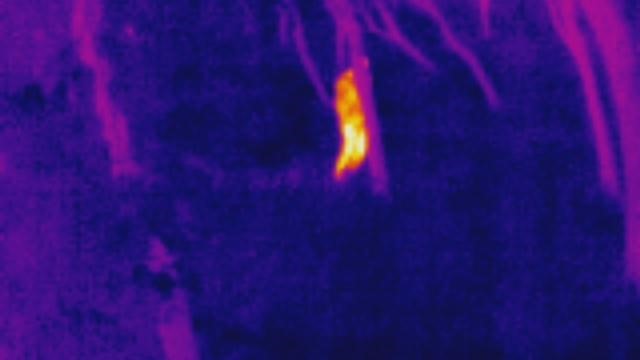

Search People: Enhance image visibility for on-the-ground team missions

Search Fire: Enhance image visibility for improved situational awareness

Customize: Create predefined isotherm settings

A Modular Tool that Extends the Capabilities of Drone Technology

Mavic 2 Enterprise allows new DJI accessories to be securely mounted to the drone’s body and is operated through the flight control app. These accessories open new paths for pilots to communicate and work from the air, moving drones beyond imaging tools and into configurable platforms that enhance aerial productivity.

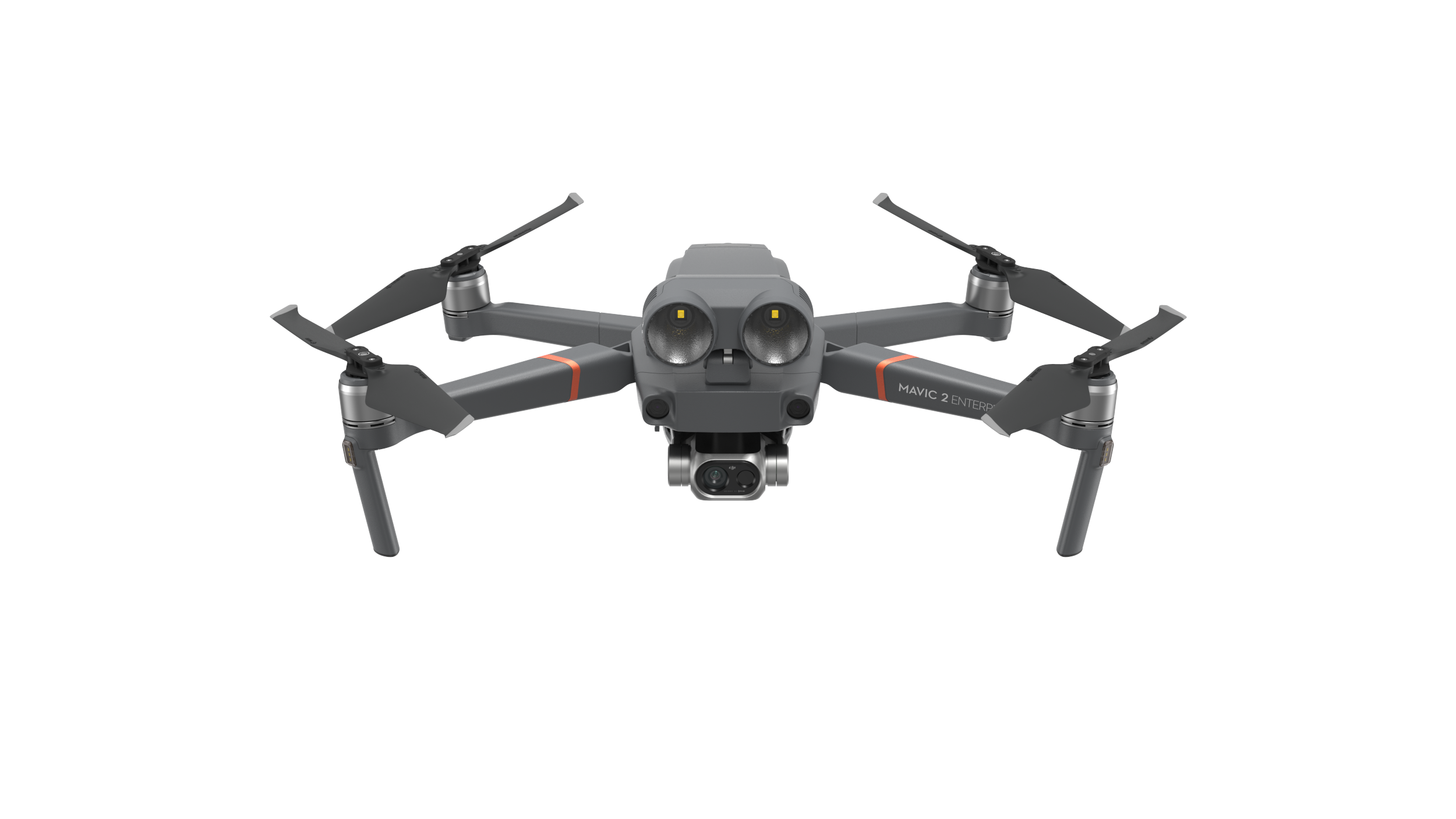

M2E Spotlight – A dual spotlight with a brightness of 2,400 lumens aids operators in carrying out missions in dark or low-light areas. Spotlight is ideal for search and rescue as well as inspection applications.

M2E Speaker – A loudspeaker with a maximum projection of 100 decibels lets pilots play up to 10 custom voice recordings on demand, providing a communications channel to nearby individuals that can be critical during lifesaving emergency operations.

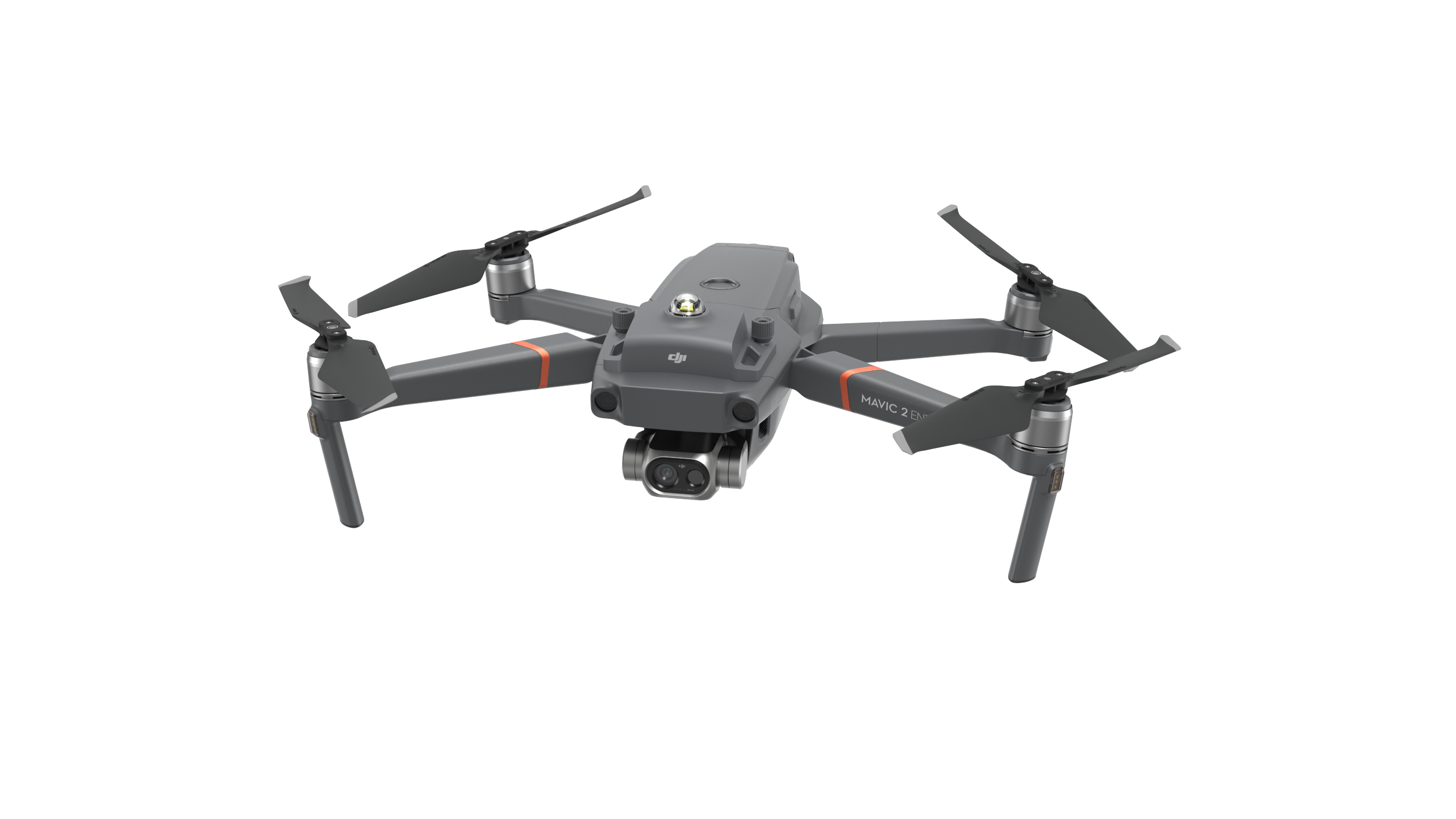

M2E Beacon – Designed with U.S. Federal Aviation Administration (FAA) Night Waiver standards in mind, the M2E Beacon features a bright flashing strobe visible three miles away. This helps pilots carry out missions in low-light conditions or at night much more safely, and provides additional airspace awareness for operators of nearby drones and traditional aircraft.

Enhanced Data Security Features

Mavic 2 Enterprise is designed with new features to protect the integrity of photos, videos, flight logs and other data generated during sensitive flights. An industry first, Mavic 2 Enterprise incorporates 24 GB of onboard data storage and password protection, creating accountability for all access to the drone’s functions and stored data. When Password Protection is enabled, users are required to enter their password each time they activate the drone, link the remote controller with the drone, and access the drone’s onboard storage, giving them full, exclusive use and enhanced security. This provides secure access to the drone and its onboard data storage, while protecting that data even if the drone is physically compromised.



A new GPS timestamping feature encodes the time, date, and location of every recorded image, aiding in pilot accountability and ensuring that data captured by the drone can be trusted and used in situations from reviewing critical infrastructure inspections to potential legal proceedings.

Cutting-Edge Technology To Improve Airspace Safety

Every Mavic 2 Enterprise comes equipped with DJI’s AirSense technology to help improve pilots’ situational awareness and enhance airspace safety. AirSense uses an integrated receiver to automatically alert drone pilots of ADS-B signals from nearby airplanes and helicopters, providing real-time positioning alerts through the DJI Pilot mobile app. This provides an extra level of safety for professional drone operators who fly in congested airspace or near complicated operations, such as wildfire suppression, disaster recovery and infrastructure monitoring. DJI AirSense is a key system to help ensure drones remain a safe addition to the skies.

Designed for Power, Reliability, and In-flight Safety

Mavic 2 Enterprise uses DJI’s FOC propulsion motors combined with efficient propellers for quieter and more efficient flight, delivering a maximum flight time of up to 31 minutes and a top speed of 72 kph (45 mph). In addition, a new self-heating battery developed specifically for Mavic 2 Enterprise allows the drone to perform reliably in adverse weather conditions as low as -10 Celsius (14 Fahrenheit).Mavic 2 Enterprise features DJI’s latest video and data transmission system, Ocusync 2.0, providing a more stable connection between the drone and its remote controller. The system features stronger interference resistance and auto-switching capabilities that support both 2.4 GHz and 5.8 GHz frequency bands with the capability to use different frequencies for uplink and downlink data streams. Ocusync 2.0 delivers such a strong high definition video transmission feed back to the pilot that it could be received up to nearly five miles (eight km)[2] away, though all drone pilots must follow applicable laws about keeping drones within their line of sight.

Mavic 2 Enterprise’s FlightAutonomy system features omnidirectional obstacle sensing for safer flight, incorporating data from eight high-resolution vision sensors and two infrared sensors. Its Advanced Pilot Assistance System (APAS) allows the drone to sense and automatically avoid obstacles in front of and behind it, providing additional safety – especially for new pilots and when flying in areas with obstacles or rugged terrain.

PRODUCT SPECS

AIRCRAFT



Takeoff Weight(Without Accessories) 899 g
Dimensions(L×W×H) Folded: 214×91×84 mm

Unfolded: 322×242×84 mm

Unfolded+Spotlight:322×242×114 mm

Unfolded+Beacon:322×242×101 mm

Unfolded+Speaker:322×242×140 mm

Diagonal Length 354 mm
Max Ascent Speed 5 m/s (S-mode[1])

4 m/s (P-mode)

4 m/s (S-mode with accessories[1])

4 m/s (P-mode with accessories)

Max Descent Speed 3 m/s (S-mode[1])

3 m/s (P-mode)

Max Speed (near sea level, no wind) 72 kph (S-mode,without wind)

50 kph (P-mode,without wind)

Max Service Ceiling Above Sea Level 6000 m
Max Flight Time (no wind) 31 min (at a consistent speed of 25 kph)
Max Hovering Time (no wind) 29 min

27 min (with beacon turned on)

28 min (with beacon turned off)

22 min (with spotlight turned on)

26 min (with spotlight turned off)

25 min (with speaker turned on)

26 min (with speaker turned off)

Max Wind Speed Resistance 29–38

kph

Max Tilt Angle 35° (S-mode, with remote controller)

25° (P-mode)

Max Angular Velocity 200°/s(S-Mode)

100°/s(P-Mode)200°/s(S-Mode)

100°/s(P-Mode)

Operating Temperature Range -10°C to 40°C
GNSS GPS+GLONASS
Operating Frequency 2.400 – 2.4835 GHz

5.725 – 5.850 GHz

Transmission Power (EIRP) 2.400 – 2.4835 GHz

FCC:≤26 dBm

CE:≤20 dBm

SRRC:≤20 dBm

MIC:≤20 dBm5.725-5.850 GHz

FCC:≤26 dBm

CE:≤14 dBm

SRRC:≤26 dBm



GIMBAL



Mechanical Range Tilt: -135 – +45°

Pan: -100 – +100°

Controllable Range Tilt: -90 – +30°

Pan: -75 – +75°

Stabilization 3-axis (tilt, roll, pan)
Max Control Speed (tilt) 120°/s
Angular Vibration Range ±0.005°



M2ED THERMAL CAMERA



Sensor Uncooled VOx Microbolometer
Lens HFOV: 57°

Aperture: f/1.1

Resolution 160×120
Pixel Pitch 12 μm
Spectral Band 8-14 μm
Image Size 640×480 (4:3);

640×360 (16:9)

Still Photography Modes Single shot

Burst shooting: 3/5/7 frames

Video Recording Modes 640×360 @8.7fps
Accuracy High Gain: Max ±5% (typical)

Low Gain: Max ±10% (typical)

Scene Range High Gain: -10° to +140°C

Low Gain: -10°to +400°C

Photo JPEG
Video MP4, MOV (MPEG-4 AVC/H.264)



M2ED VISUAL CAMERA



Sensor 1/2.3″ CMOS; Effective pixels: 12M
Lens FOV: approx. 85°

35 mm format equivalent:24 mm

Aperture: f/2.8

Focus: 0.5 m to ∞

ISO Range Video: 100-3200 (auto)

Photo: 100-1600 (auto)

Max Image Size 4056×3040(4:3);4056×2280(16:9)
Still Photography Modes Single shot

Burst shooting: 3/5/7 frames

Interval (2/3/5/7/10/15/20/30/60 s)

Video Recording Modes 4K Ultra HD:3840×2160 30p

2.7K:2688×1512 30p

FHD:1920×1080 30p

Max Video Bitrate 100 Mbps
Photo JPEG
Video Format MP4,MOV (MPEG-4 AVC/H.264)







CHARGER



Input 100-240V, 50-60Hz, 1.8A
Output Main: 17.6V ⎓ 3.41A or 17.0V⎓3.53

USB: 5 V ⎓ 2 A

Voltage 17.6±0.1V
Rated Power 60W



INTELLIGENT FLIGHT BATTERY



Capacity 3850 mAh
Voltage 15.4 V
Max Charging Voltage 17.6 V
Battery Type LiPo
Energy 59.29 Wh
Net Weight 297 g
Charging Temperature 5℃ – 40℃
Operating Temperature Range -10℃ to 40℃
Heating Methods Manual Heating;Auto Heating
Heating Temperature -10℃ to 6℃
Heating duration: 500s (Max)
Heating Power 55W (Max)
Charging Time 90 min
Max Charging Power 80W



SENSING SYSTEM



Sensing System Omnidirectional Obstacle Sensing [2]
Forward Precision Measurement Range:0.5 – 20 m

Detectable Range: 20 – 40 m

Effective Sensing Speed: ≤ 14m/s

FOV: Horizontal: 40°, Vertical: 70°

Backward Precision Measurement Range: 0.5 – 16 m

Detectable Range: 16 – 32 m

Effective Sensing Speed: ≤ 12m/s

FOV: Horizontal: 60°, Vertical: 77°

Upward Precision Measurement Range: 0.1 – 8 m
Downward Precision Measurement Range: 0.5 – 11 m

Detectable Range: 11 – 22 m

Sides Precision Measurement Range:0.5 – 10 m

Effective Sensing Speed: ≤ 8m/s

FOV: Horizontal: 80°, Vertical: 65°

Operating Environment Forward, Backward and Sides:

Surface with clear pattern and adequate lighting (lux > 15)

Upward:

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

Downward:

Surface with clear pattern and adequate lighting (lux > 15)

Detects diffuse reflective surfaces (>20%)

(walls, trees, people, etc.)

REMOTE CONTROLLER



Operating Frequency 2.400 – 2.483 GHz; 5.725 – 5.850 GHz
Max Transmission Distance(Unobstructed, free of interference) 2.400 – 2.483 GHz; 5.725 – 5.850 GHz

FCC: 8000 m

CE: 5000 m

SRRC: 5000 m

MIC: 5000 m

Operating Temperature Range 0℃ to 40℃
Transmitter Power(EIRP) 2.4 – 2.4835 GHz

FCC:≤26 dBm;CE:≤20 dBm;SRRC:≤20 dBm MIC:≤20 dBm

5.725 – 5.850 GHz

FCC:≤26 dBm;CE:≤14 dBm;SRRC:≤26 dBm

Battery 3950mAh
Charging Time 2 hours 15 min
Operating Current/Voltage 1800mA ⎓ 3.83V
Mobile Device Holder Thickness Supported:6.5-8.5 mm,Max length: 160 mm
RC Size Folded: 145×80×48 mm (L×W×H)

Unfolded: 190×115×100 mm (L×W×H)

Supported USB port types Lightning, Micro USB (Type-B), USB Type-C™

APP / LIVE VIEW



Video Transmission System OcuSync 2.0
Mobile App DJI PILOT
Live View Quality Remote Controller:

720p@30fps / 1080p@30fps

Max Live View Bitrate 40 Mbps
Latency 120 – 130 ms
Required Operating Systems ios 9.0 or later Android 4.4.0 or later



SUPPORTED SD CARDS

Supported SD Cards Micro SD™

Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3



M2E SPOTLIGHT

Dimensions 68x60x41 mm
Port Type USB Micro-B
Operating Range 30 m
Power Max 26W
Illuminance FOV17°, Max:11lux @ 30m Straight

M2E BEACON

Dimensions 68x40x27.8 mm
Port Type USB Micro-B
Power Avg. 1.6W
Controllable Range 5000 m
Light intensity Min Angle:55 cd;

Light intensity:157 cd

M2E SPEAKER

Dimensions 68x55x65 mm
Port Type USB Micro-B
Power Max 10W
Decibel 100 db @ 1 meter distance
Bitrate 16 kbps
