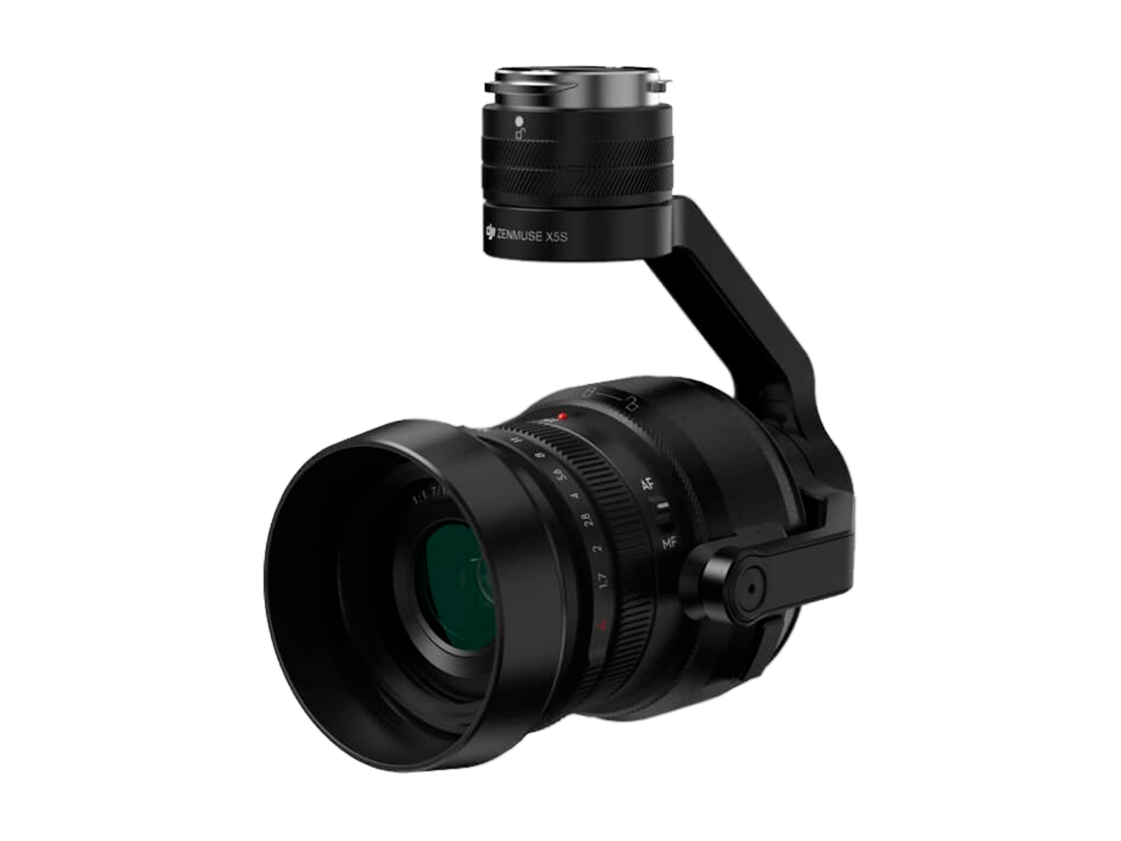

ZENMUSE X5S

M 4/3

5.2K 30FPS

4K 60FPS

20.8MP

STILL

12.8 STOPS

12-BITS RAW

20FPS

CONTINUOS

BURST

Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much-improved signal to noise ratio and color sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), allowing more creative flexibility. The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designed to keep pace with the rigors of high-end professional aerial imaging.

60

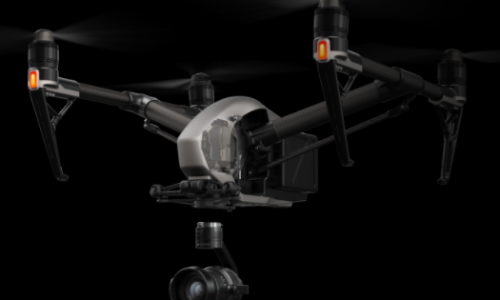

INSPIRE 2 AERIAL IMAGING



Compared with the Inspire 1, the Inspire 2 utilizes an innovative structure that separates the CineCore 2.0 image processing system from the camera and places it inside the aircraft. This means that the sensor and optical system are detachable and easily connected using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference originating from the processor. It also allows a range of lightweight camera units to be connected as required by different scenes. The uprated M4/3 sensor — and support for interchangeable lenses — allows the Zenmuse X5S to capture high resolution images of incredibly high quality, when combined with the extraordinary CineCore 2.0 image processing system.

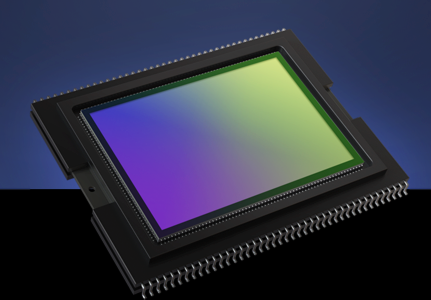

IMPROVED MICRO 4/3 SENSOR



The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4μm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and color sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.

61

ARRAY OF COMPATIBLE LENSES



Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.



Olympus M.Zuiko 12mm/2.0



DJI MFT 15mm/1.7 ASPH
Olympus M.Zuiko 17mm/1.8 Panasonic Lumix 15mm/1.7
Olympus M.Zuiko 25mm/1.8 Panasonic Lumix 14-42mm/3.5-5.6 HD
Olympus M.Zuiko 45mm/1.8 Olympus M.Zuiko 9-18mm/4.0-5.6



*A balancing ring is needed for some lenses. More compatible lenses will be available.

62

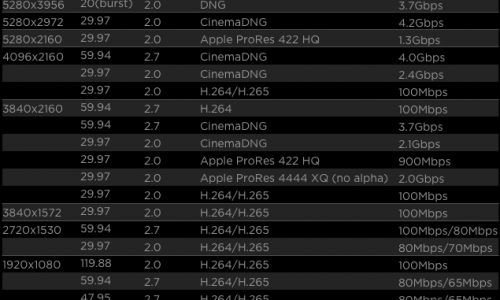

HOLLYWOOD-GRADE VIDEO



Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit1, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ (no alpha)2. Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bit rate of 100Mbps.

1 2Additional licenses required

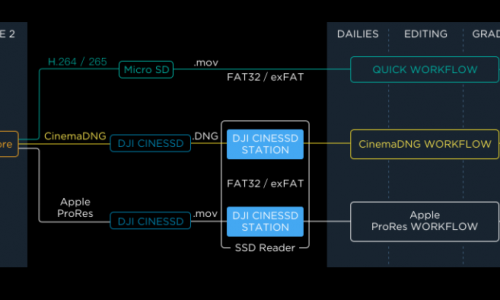

FAST, EFFICIENT WORKFLOWS



The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allows Zenmuse X5S footage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without any additional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.

63
64

LOSSLESS IN-VIDEO SINGLE AND BURST PHOTO CAPTURE



Using only the Micro SD card, 20.8MP stills can be captured at 14fps in Burst Mode in JPEG+DNG. Using the DJI CINESSD opens up 20fps continuous DNG Burst Mode with a maximum image resolution of 20.8 megapixels. Stills can also be taken during video recording without interruption.

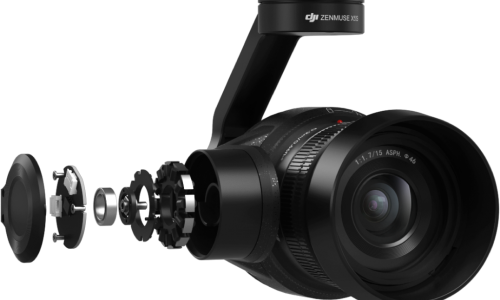

ENHANCED CAMERA STABILIZATION





Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video. 360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage1 can be captured even when using a 90mm2 lens.



1 Equivalent to 35mm camera’s standard focal length

2 Exposure time must be equal to or longer than 1/60 in GPS mode

65
66

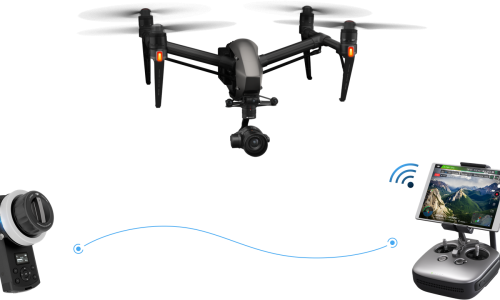

LONG-RANGE CAMERA AND FOCUS CONTROL







Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO 4 app. Precision control also extends to focus, with DJI GO 4 and the optional DJI Focus, offering focus control across the entire transmission range. Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.

* Unobstructed, free of interference, when FCC compliant.

SPECS

GENERAL



Name Zenmuse X5S
Dimensions 140×98×132 mm
Weight 461 g (Lens Kit)



GIMBAL



Angular Vibration Range ±0.01°
Mount Detachable
Controllable Range Tilt: +30°to -90°, Pan: ±320°
Mechanical Range Tilt: +50°to -140°, Pan: ±330°, Roll: +90° to +30°
Max Controllable Speed Tilt: 90°/s, Pan: 90°/s



ENVIRONMENTAL



Operating Temperature 14°–104°F (-10 to 40℃)
Storage Temperature -4°–140°F (-20 to 60℃)











CAMERA



Supported Lens DJI MFT 15mm/1.7 ASPH (With Balancing Ring and Lens Hood)
Panasonic Lumix 15mm/1.7 (With Balancing Ring and Lens Hood)
Panasonic Lumix 14-42mm/3.5-5.6 HD
Olympus M.Zuiko 12mm/2.0 (With Balancing Ring)
Olympus M.Zuiko 17mm/1.8 (With Balancing Ring)
Olympus M.Zuiko 25mm/1.8
Olympus M.Zuiko 45mm/1.8
Olympus M.Zuiko 9-18mm/4.0-5.6
Sensor CMOS, 4/3”
Effective Pixels: 20.8MP
FOV 72° (with DJI MFT 15mm/1.7 ASPH )
Photo Resolutions 4:3, 5280×3956
16:9, 5280×2970



Video Resolutions Aspect Ratio 17:9

CinemaDNG
4K DCI: 4096×2160 23.976/24/25/29.97p,
up to 2.4Gbps; 50/59.94p, up to 4.0Gbps

H.264
4K DCI: 4096×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps

H.265
4K DCI: 4096×2160 23.976/24/25/29.97p @100Mbps

Aspect Ratio 16:9

CinemaDNG
4K Ultra HD: 3840×2160 23.976/24/25/29.97p,
up to 2.4Gbps; 50/59.94p, up to 4.0Gbps

ProRes
4K Ultra HD: 3840×2160 23.976/24/25/29.97p,
422 HQ @900Mbps; 23.976/24/25/29.97p, 4444 XQ @2.0Gbps

H.264
4K Ultra HD: 3840×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps
2.7K: 2720×1530 23.976/24/25/29.97p @80Mbps; 47.95/50/59.94p @100Mbps
FHD: 1920×1080 23.976/24/25/29.97p @60Mbps;
47.95/50/59.94p @80Mbps; 119.88p @100Mbps

H.265
4K Ultra HD: 3840×2160 23.976/24/25/29.97p @100Mbps
2.7K: 2720×1530 23.976/24/25/29.97p @65Mbps;
47.95/50/59.94p @80Mbps
FHD: 1920×1080 23.976/24/25/29.97p @50Mbps;
47.95/50/59.94p @65Mbps; 119.88p @100Mbps

Aspect Ratio 2.44:1

CinemaDNG
5.2K: 5280×2972 23.976/24/25/29.97p, up to 4.2Gbps

ProRes
5.2K: 5280×2160 23.976/24/25/29.97p, 422 HQ @1.3Gbps

H.264/H.265
4K Ultra HD: 3840×1572 23.976/24/25/29.97p @100Mbps

Photo Formats DNG,JPEG,DNG+JEPG



Video Formats RAW,ProRes,MOV,MP4
Operation Modes Capture, Record, Playback
Still Photography Modes Micro SD: Single shot, Burst Shooting:
3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Interval
SSD: RAW Burst Shooting:
3/5/7/10/14/20/∞ frames
Exposure Mode Auto, Manual, Shutter, Aperture
Exposure Compensation ±3.0 (1/3 increments)
Metering Mode Center-weighted metering,
Spot metering (area option 12×8)
AE Lock Supported
Electronic Shutter Speed 8-1/8000s
White Balance Auto, Sunny, Cloudy, Incandescent,
Neon Custom (2000K–10000K)
ISO Range 100 – 6400 (Video)
100 – 25600 (Stills)
Video Captions Supported
Anti-Flicker Auto, 50Hz, 60Hz
PAL/NTSC Supported
